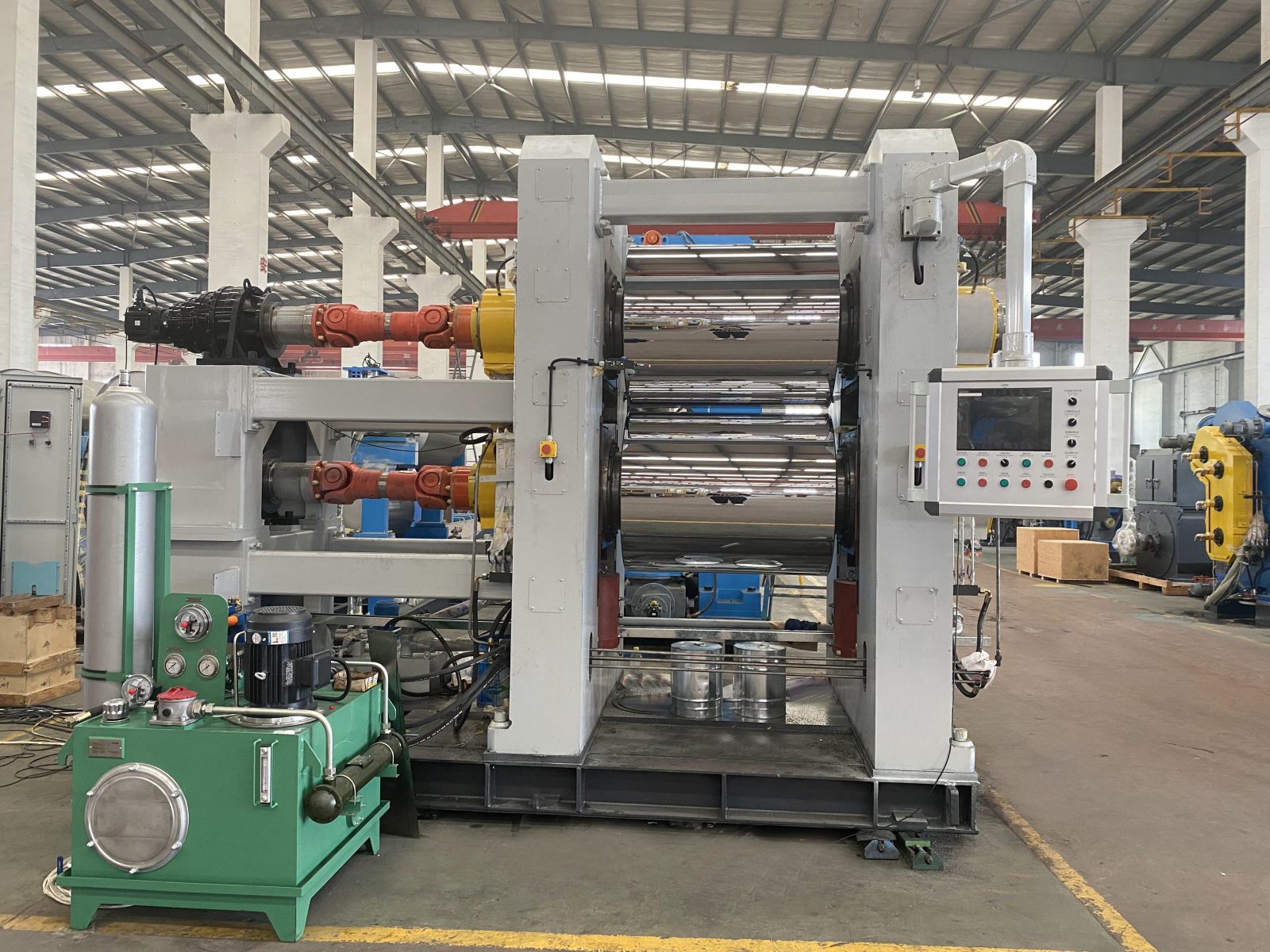

Two-roll calender

The two-roll calender is widely used in the field of polymer material processing, mainly for continuously forming thermoplastic or thermosetting materials into films, sheets, or composite products through heating and roller pressure.
Its core application scenarios cover multiple industrial fields such as rubber, plastics, artificial leather, papermaking, and electronic materials. For example: rubber industry, plastics and film manufacturing, composite materials and functional materials, special industrial materials.

Product Features: Multi-roller structure design, high-rigidity frame, precise gap adjustment system, good temperature control uniformity, high degree of automation integration.

Advantages: High production efficiency, excellent product quality, strong process adaptability, energy-saving and environmentally friendly design, intelligent monitoring and convenient maintenance.

Application: This rubber two-roll calender is mainly suitable for calendering rubber sheets of different widths such as conveyor belts and rubber sheets, and for laminating tire tread cushion layers in tire factories. It can be matched with a composite tread extrusion tandem production line.

Structural Features:

1. The base is an integral welded base, which has been annealed for good stability;

2. The bearings at both ends of the roller are rolling bearings, resulting in high precision of the produced rubber sheet and long service life of the equipment;

3. The gap adjustment method is electric adjustment or manual adjustment;

4. The lubrication method is thin oil lubrication. When the main machine is started, the lubrication oil must be started, and oil is supplied in real time to ensure the equipment is not short of oil;

5. The motor adopts a variable frequency motor plus a variable frequency speed regulator for adjustment;

6. The roller material is chilled alloy cast iron, and the surface smoothness can reach a mirror finish according to requirements. The reducer is a hard-tooth surface square box reducer with long service life and low noise;

7. The motor adopts a variable frequency motor plus a variable frequency speed regulator for adjustment.

Main Technical Specification

Item	Model XY-2I(Φ) 160×320	Model XY-2I(Φ) 230×630	Model XY-2I(Φ) 252×720	Model XY-2I(Φ) 300×900	Model XY-2I(Φ) 360×1120	Model XY-2I(Φ) 400×1200	Model XY-2I(Φ) 450×1400	Model XY-2I(Φ) 500×1500	Model XY-2I(Φ) 550×1650	Model XY-2I(Φ) 610×1730	Model XY-2I(Φ) 710×2130	Model XY-2I(Φ) 810×2430	Model XY-2I(Φ) 860×2500
Roll Dia (mm)	160	230	252	300	360	400	450	500	550	610	710	810	860
Roll Working Length (mm)	320	630	720	900	1120	1200	1400	1500	1650	1730	2130	2430	2500
Roll Ratio	1:1	1:1	1:1	1:1	1:1	1:1	1:1	1:1	1:1	1:1	1:1	1:1	0.5~1 (Stepless adjustable)
Roll Linear Speed (m/min)	1-7.6	1-8	1.2-12	1.7-17	3-20.2	3-20	2.5-24.8	2.5-25	2-18.7	4-36	2-20	2-20	3-30
Adjusting Gap Range (mm)	0-4.5	0~6	0-6	0-10	0-10	0-10	0-10	0-10	0-12	0-15	0-25	0-25	0-30
Minimum Calendering Product Thickness (mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.5	0.5	0.5
Calendering Product Width (mm)	250	480	580	700	920	1000	1200	1300	1450	1500	1850	2150	2200
Motor Power (KW)	5.5	7.5	15	22	37	45	45	55	75	90	110	160	132KW×2
Overall Dimensions - L (mm)	2200	3200	3950	4000	5400	4600	7013	7100	7200	5987	8150	8690	12000
Overall Dimensions - W (mm)	530	920	1110	1350	1542	1400	1595	1650	1760	1860	3760	3139	3200
Overall Dimensions - H (mm)	1470	1550	1590	1850	1681	2450	2446	2620	2760	2988	3630	4270	4050
Gross Weight (t)	~1.2	~3.6	~5	~8	~11.5	~13	~14	~20	~24	~30	~49	~62	~85
