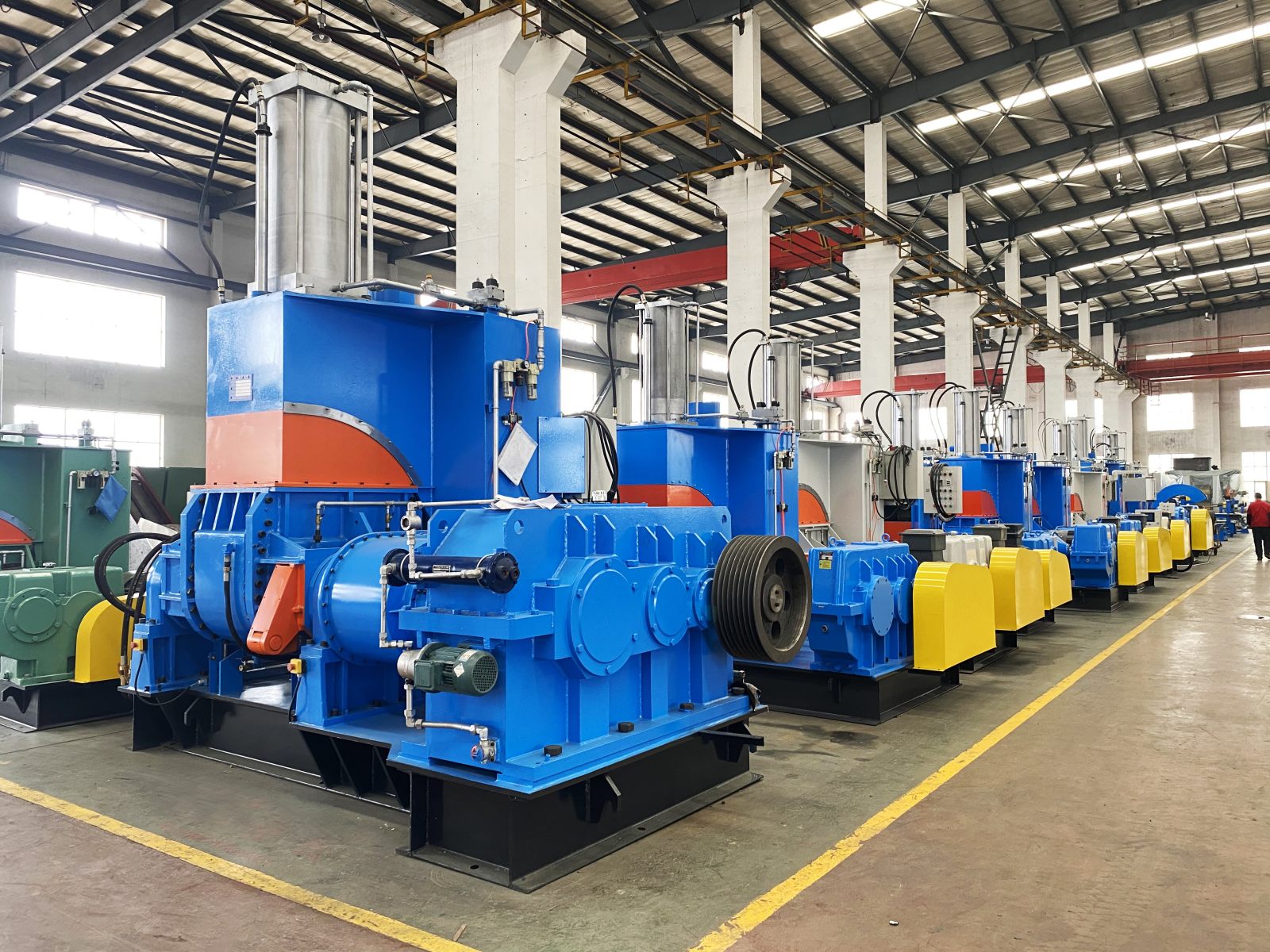

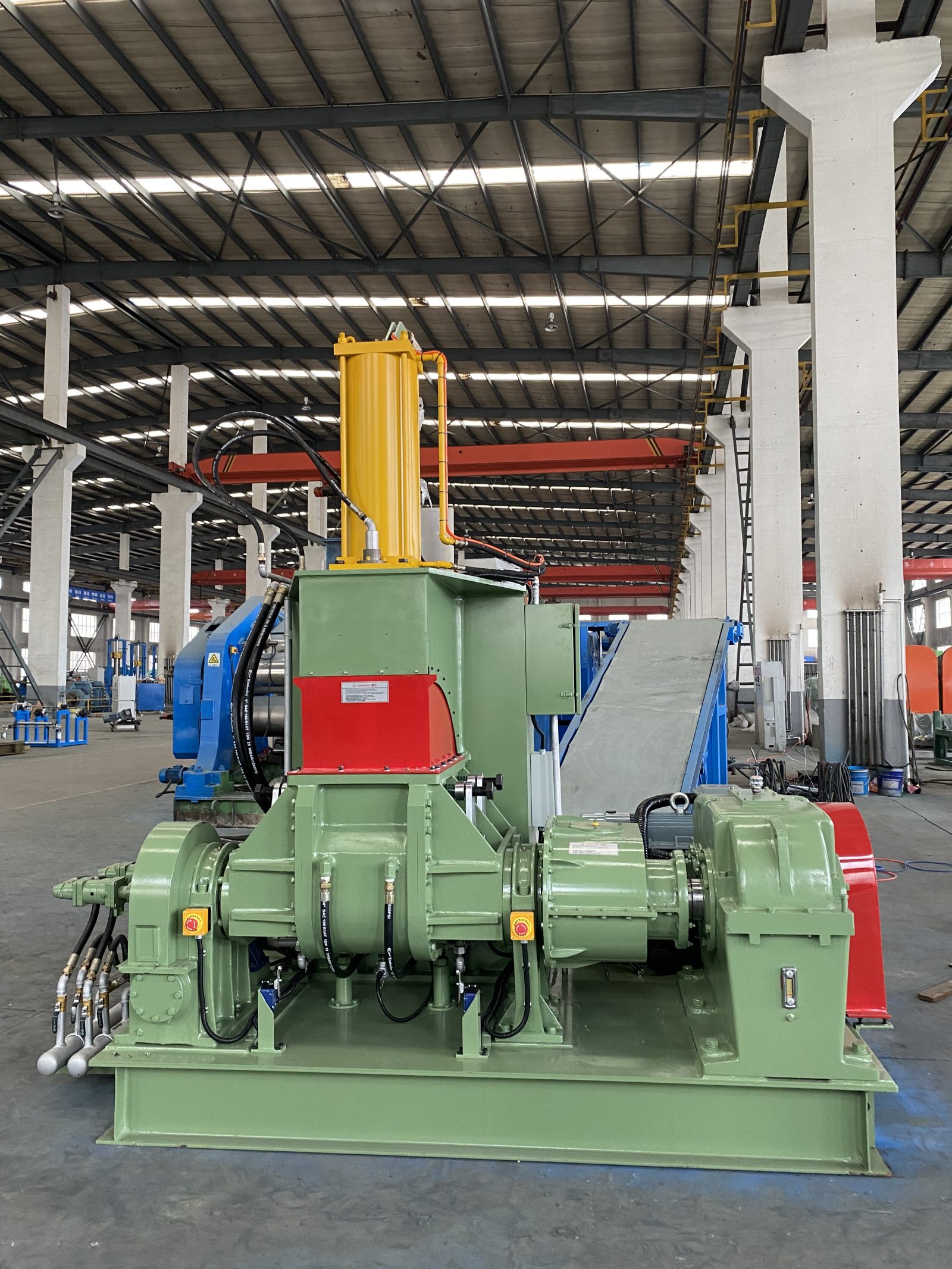

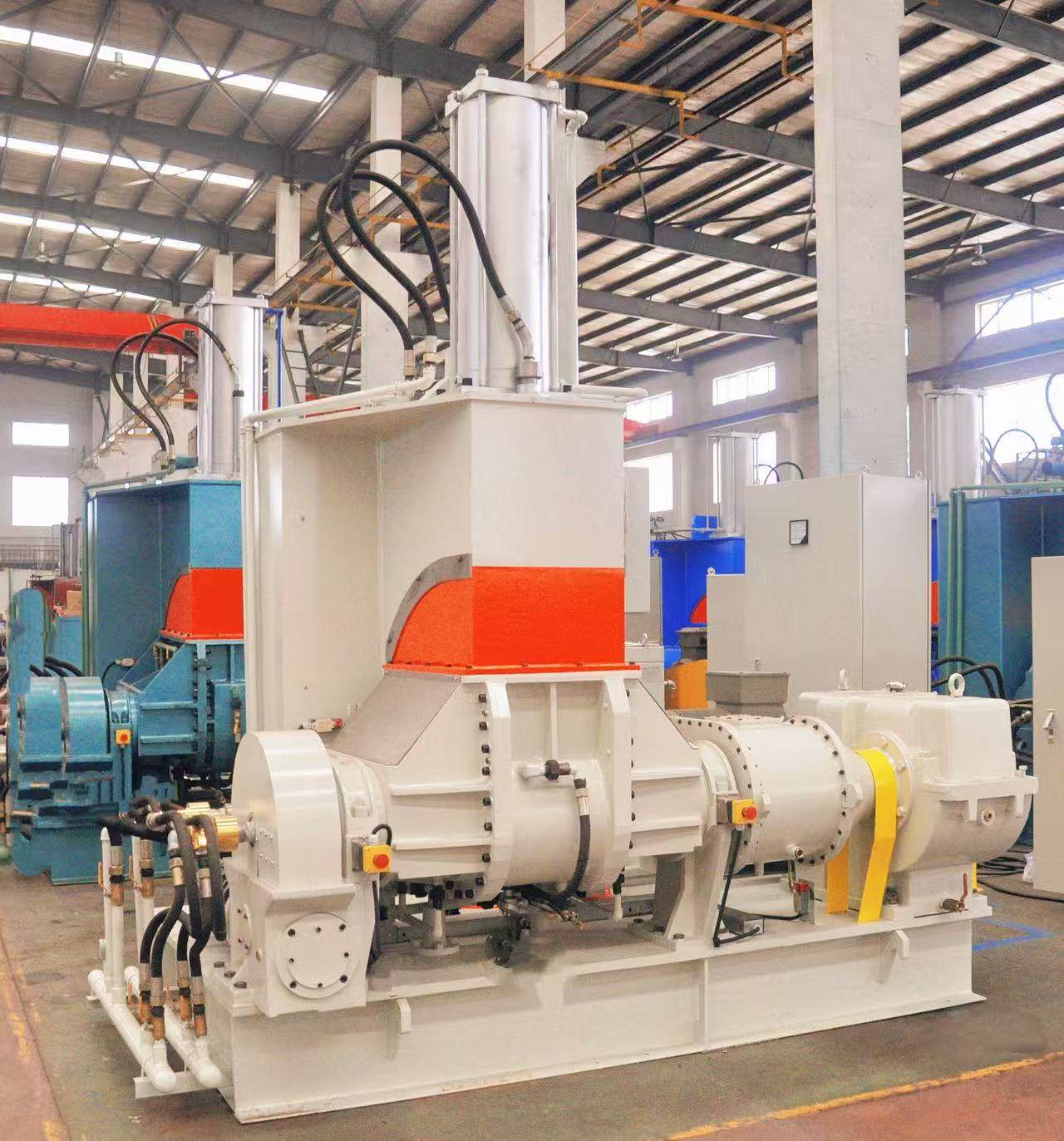

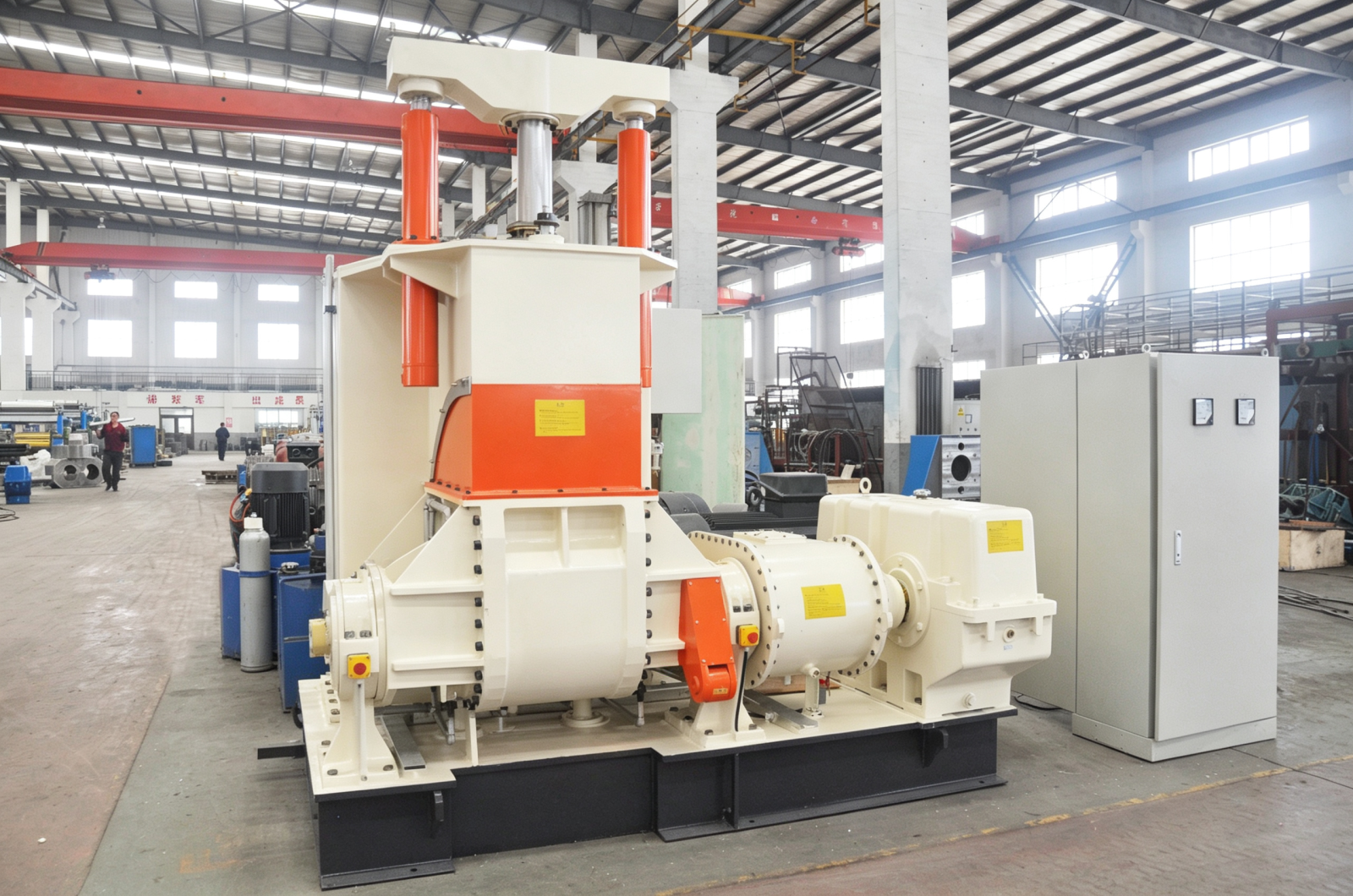

Rubber kneader（kneader mixer）

Application industries : tires, conveyor belts, transmission belts, rubber hoses, seals, rubber rollers, rubber shock absorbers, bridge bearings, rubber sheets, rubber bushings, cables, shoemaking, medical, aerospace, rail transportation, automotive rubber parts and other rubber and plastic industries .

Suitable for more materials :

NR、SBR、BR、IR、IIR、CR、EPDM、NBR、Silicone Rubber、FKM、TPE、TPU、PVC、PU、PE、PP

Kneader mixer also called dispersion pressure mixer , is the key equipment for the compounding of rubber and plastics industry. It is used for the plasticizing, mixing, and final mixing of rubber, plastics, and rubber-plastic mixtures. It is characterized by uniform mixing, stable quality, compact structure, convenient installation, simple operation, and reliable performance .

Structural Features:

1. Installed on the ground level , cover small area , compact structure.

2. Easy discharge : Tilting type discharge, suitable for factories with limited space, or low Mooney density, or frequent formula changes, or colored rubber compounds; easy to clean the mixing chamber, quick color changes, minimal residue, suitable for small-batch, multi-variety rubber compound production.

3. Excellent sealing effect, using an optimized end-face sealing structure .

4. Wear-resistant alloy and chrome plating are welded onto the mixing chamber, rotor, and other parts in contact with the rubber compound.

5. With hardened gearbox reducer, ensuring smooth transmission, high efficiency, low noise, and long service life.

6. Multiple configurations available: Double-cylinder hydraulic ram, variable speed, dust collector, top weighing system interface, HMI formula function for MES/SCADA system integration, automated control.

Item	Model X(S)N-3×32	Model X(S)N-5×32	Model X(S)N-10×32	Model X(S)N-20×32	Model X(S)N-25×32	Model X(S)N-35×30	Model X(S)N-55×30	Model X(S)N-75×30	Model X(S)N-90×30	Model X(S)N-110×30	Model X(S)N-150×30	Model X(S)N-200×30
Total Volume of Mixing Chamber (L)	8	15	25	45	55	75	125	170	205	250	325	440
Working Volume of Mixing Chamber (L)	3	5	10	20	25	35	55	75	90	110	150	200
Driving Motor Power (KW)	7.5	11	22	37	37	55	75	110	160	185	220	280
Tilting Motor Power (KW)	1.1	1.1	1.1	1.5	1.5	2.2	3	4	5.5	5.5	11	11
Tilting Angle	140	140	140	140	140	140	140	140	140	140	Hydraulic 127	Hydraulic 127
Rotational Speed of the Rotor (Front/Rear) (R/min)	32/25.8	32/23.5	32/25	32/27	32/27	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air (Mpa)	0.5~0.8	0.6~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of Compressed Air (m³/min)	≥0.3	≥0.5	≥0.5	≥0.7	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥1.5	≥2.0	≥4.0
Pressure of Cooling Water (Rubber Mixing) (Mpa)	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam (Plastics Mixing) (Mpa)	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Overall Dimensions - L (mm)	2000	1850	2640	2675	2675	3200	3230	3325	3875	4075	4250	4250
Overall Dimensions - W (mm)	1000	1200	1650	1650	1650	1900	1927	2615	2680	2712	2750	3400
Overall Dimensions - H (mm)	2220	2580	2350	2560	2560	2950	2958	3105	3580	3580	4106	4215
Gross Weight (t)	~2	~2.1	~3.3	~4	~4.5	~6.3	~7.1	~9.5	~13.9	~14.9	~19.5	~22.5
