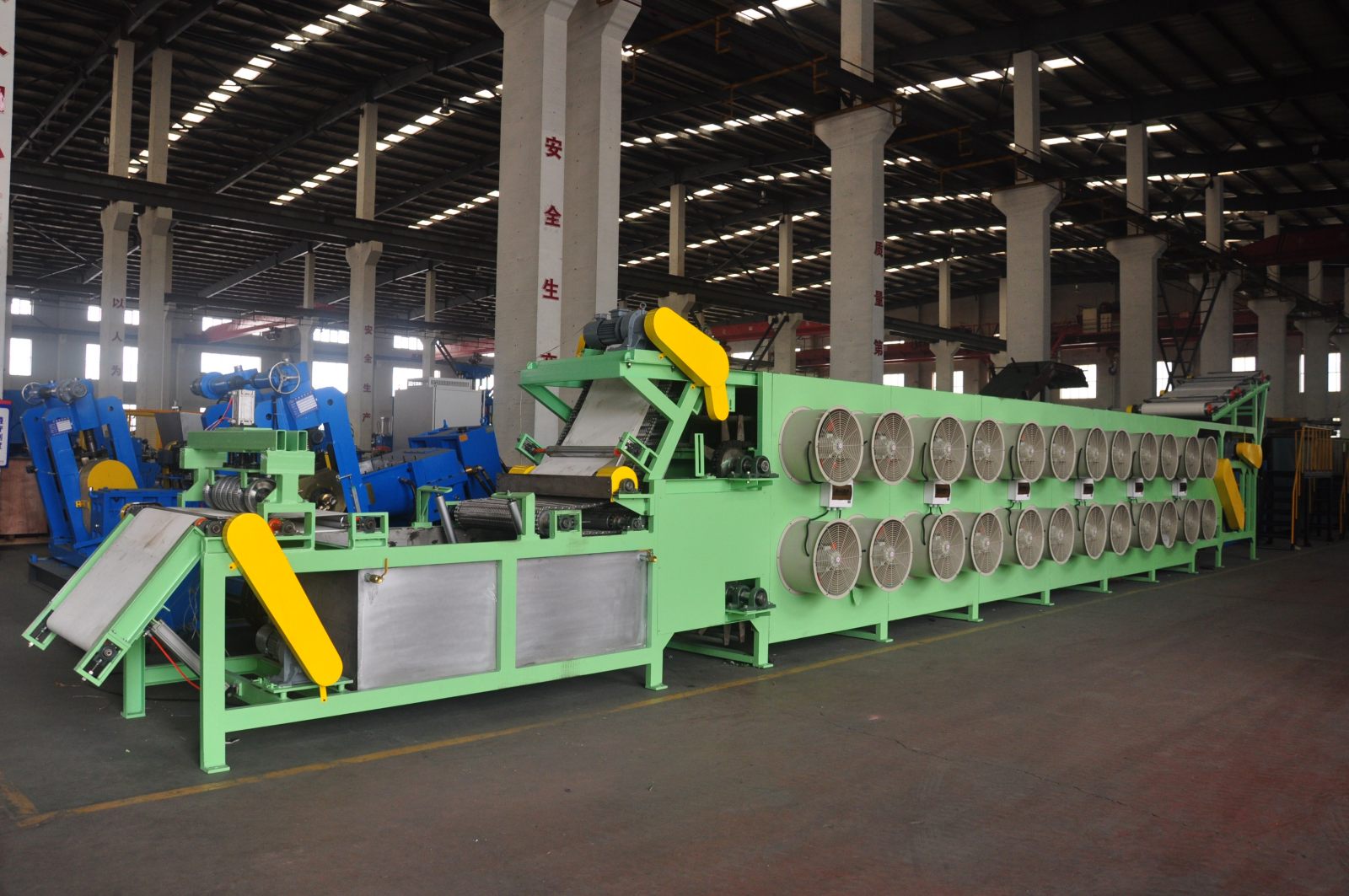

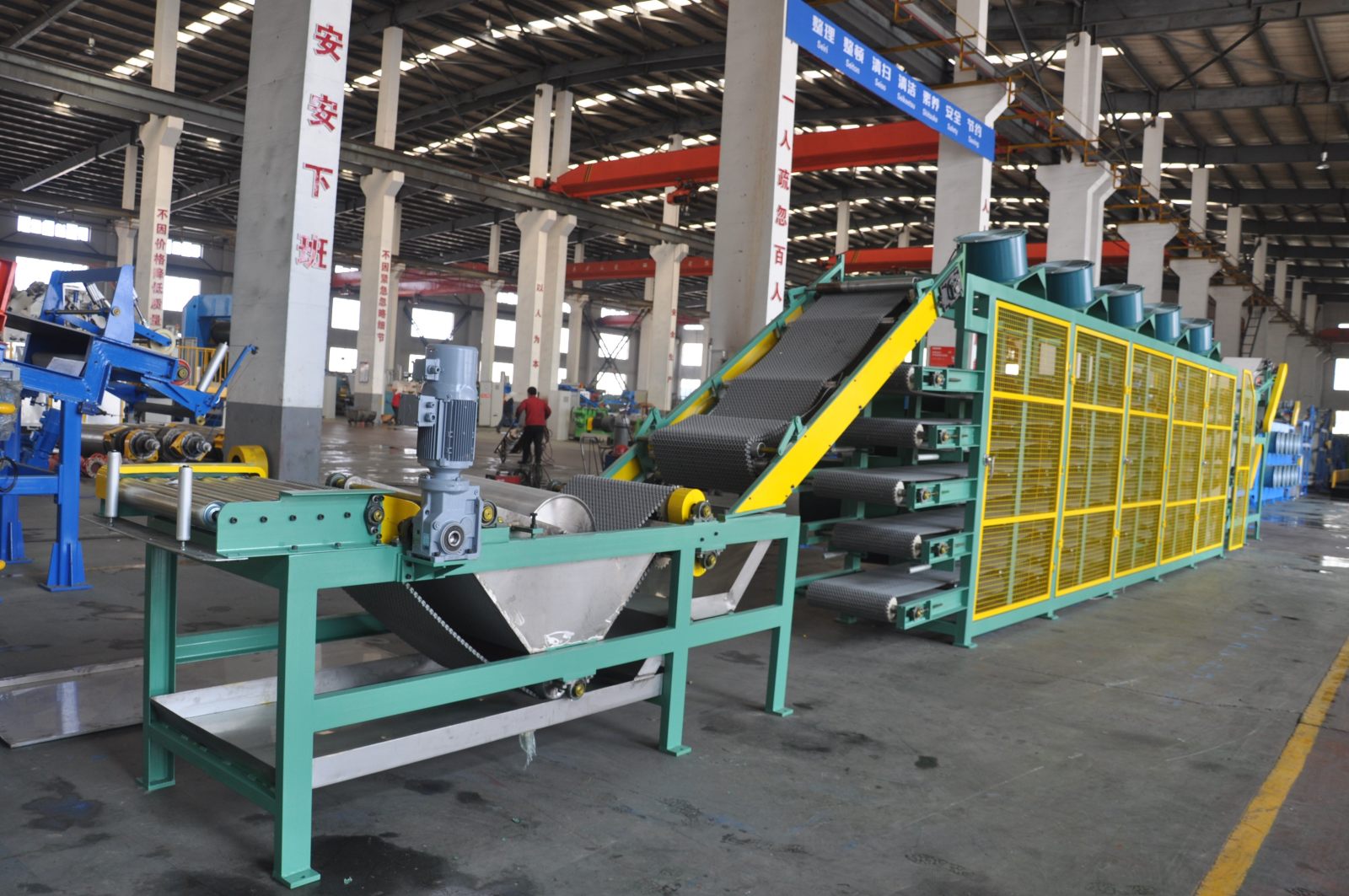

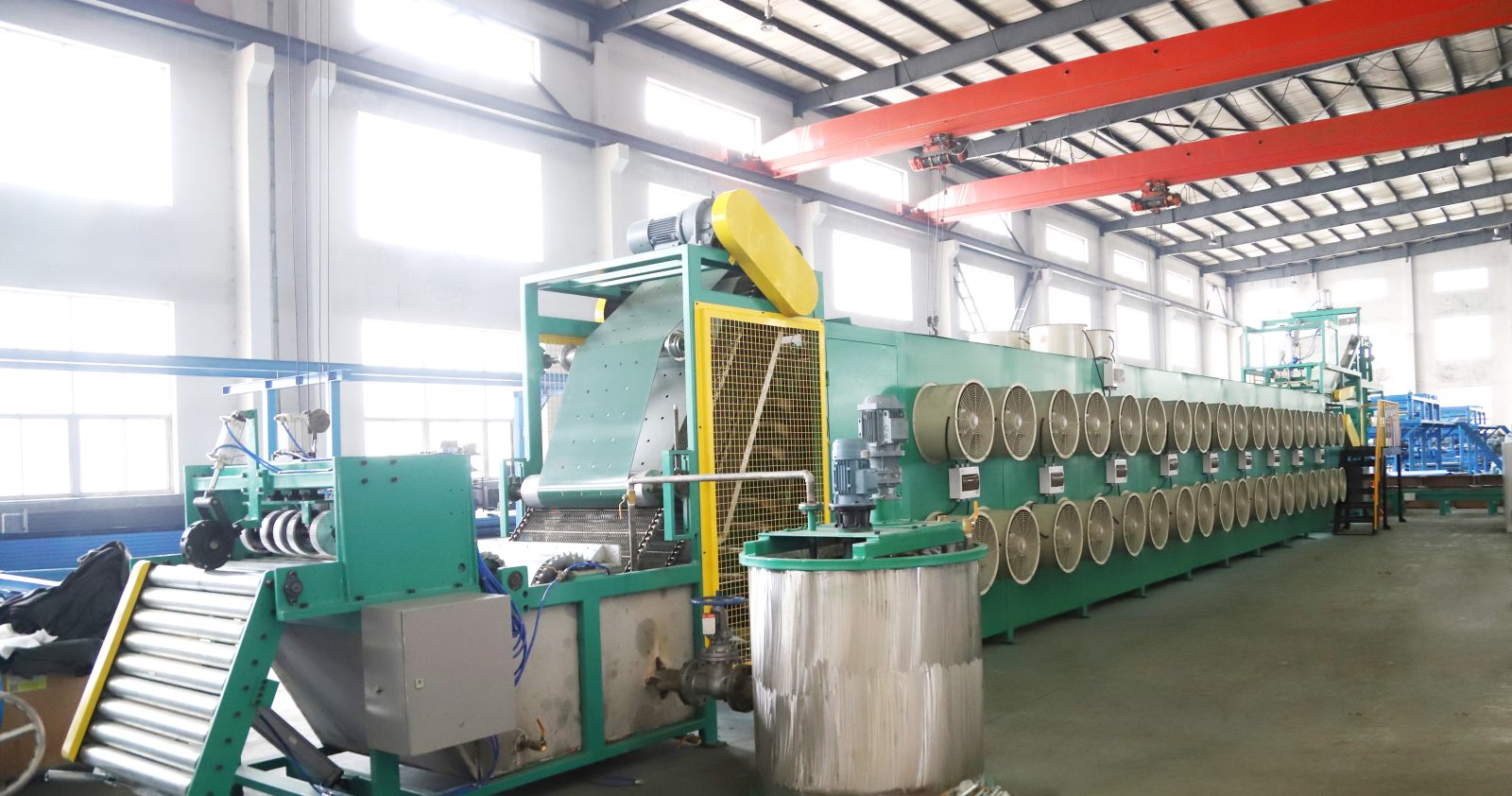

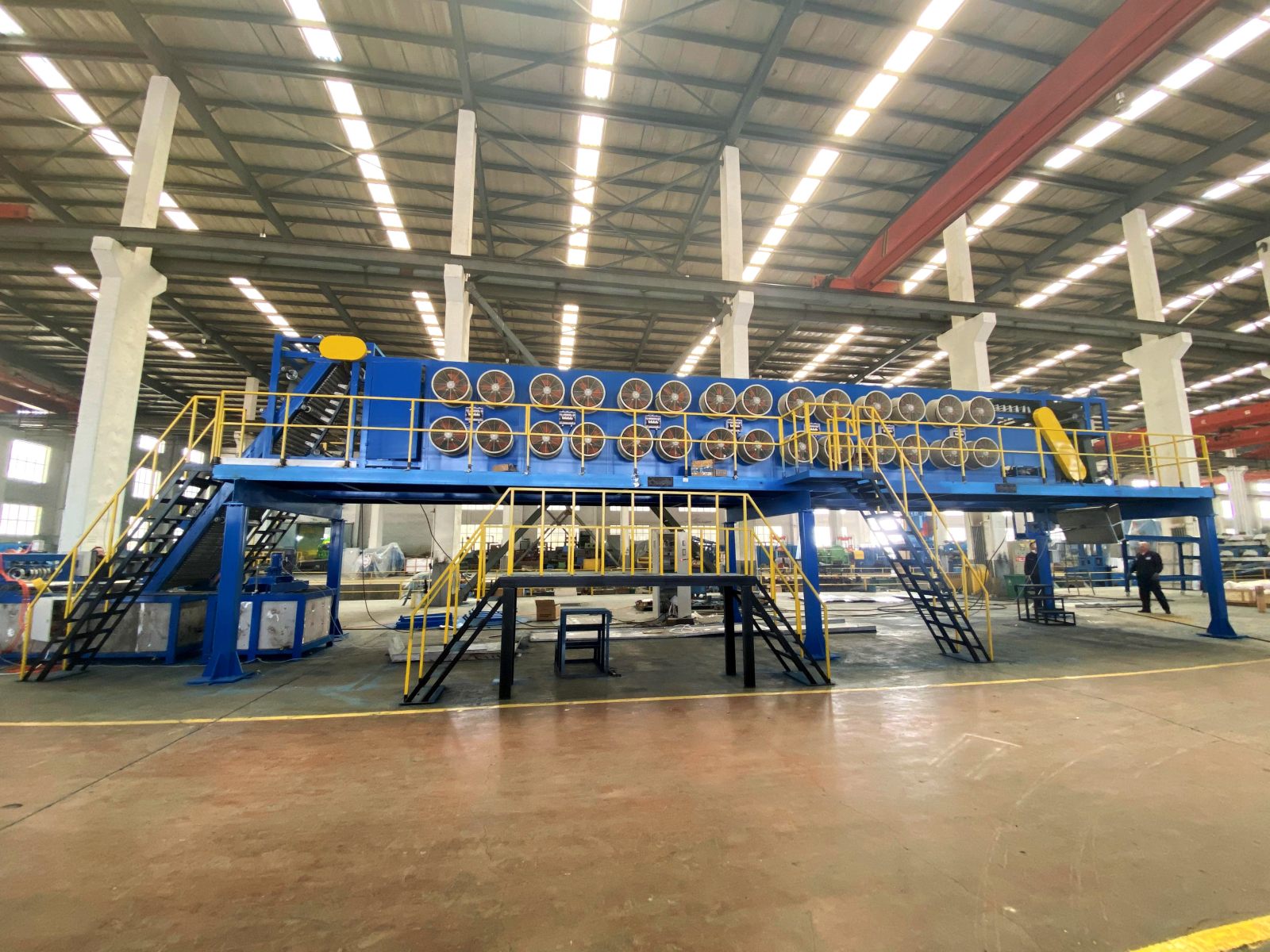

Rubber Batch off Cooling is used to rapidly cool high-temperature rubber sheets after mixing and sheeting, while simultaneously performing anti-sticking and shaping treatments, facilitating subsequent cutting, stacking, and storage. It is one of the key equipment in rubber processing. It is used in the production of rubber products such as tires, conveyor belts, rubber hoses, and seals, and is suitable for the cooling requirements of various rubber sheets, including masterbatch and final compound.

Product advantages: uniform cooling and good anti-sticking effect; fully enclosed structure with low noise and energy-saving features; the production line is highly automated, saves labor, and is suitable for continuous production.

Rubber Batch off Cooling is a device for cooling rubber sheets extruded by a sheeting machine from masticated rubber or mixed compound. The main process equipment consists of an anti-tack agent coating device, a clamping elevating conveyor belt, a hanging rubber cooling conveyor device, a cutter and stacking device, a transmission device, and a control system. The anti-tack agent coating device has two methods: immersion and spraying. The cutter and stacking device has two forms: swing-type continuous rubber folding and cut-sheet stacking.

Item	Mode/Unit	XPG-400U	XPG-600	XPG-800	XPG-900
Max. rubber sheet width	mm	400	600	800	900
Rubber sheet thickness	mm	4-10	4-10	4-10	6-12
Temperature of rubber sheet above room temperature after cooling	°C	5	5	5	5
Linear speed of taking-in conveyor	m/min	3-35	3-35	4-40	4-40
Linear speed of sheet hanging bar chain	m/min	1-3	1-3	1-3	1-3
Hanging height of sheet hanging bar	mm	1200	1200	1400	1400
Number of cooling fans	set	8-30	8-24	24-52	24-60
Total power	KW	12-30	16-32	20-63	25-70
Dimensions (L×W×H)	L	mm	5000-13000	12400	14850-28580	18000-37380
	W	mm	2600	2140	2220	2300
	H	mm	2970	2820	2860	2980
Approx. gross weight	t	~5-14	~10	~20	~30
