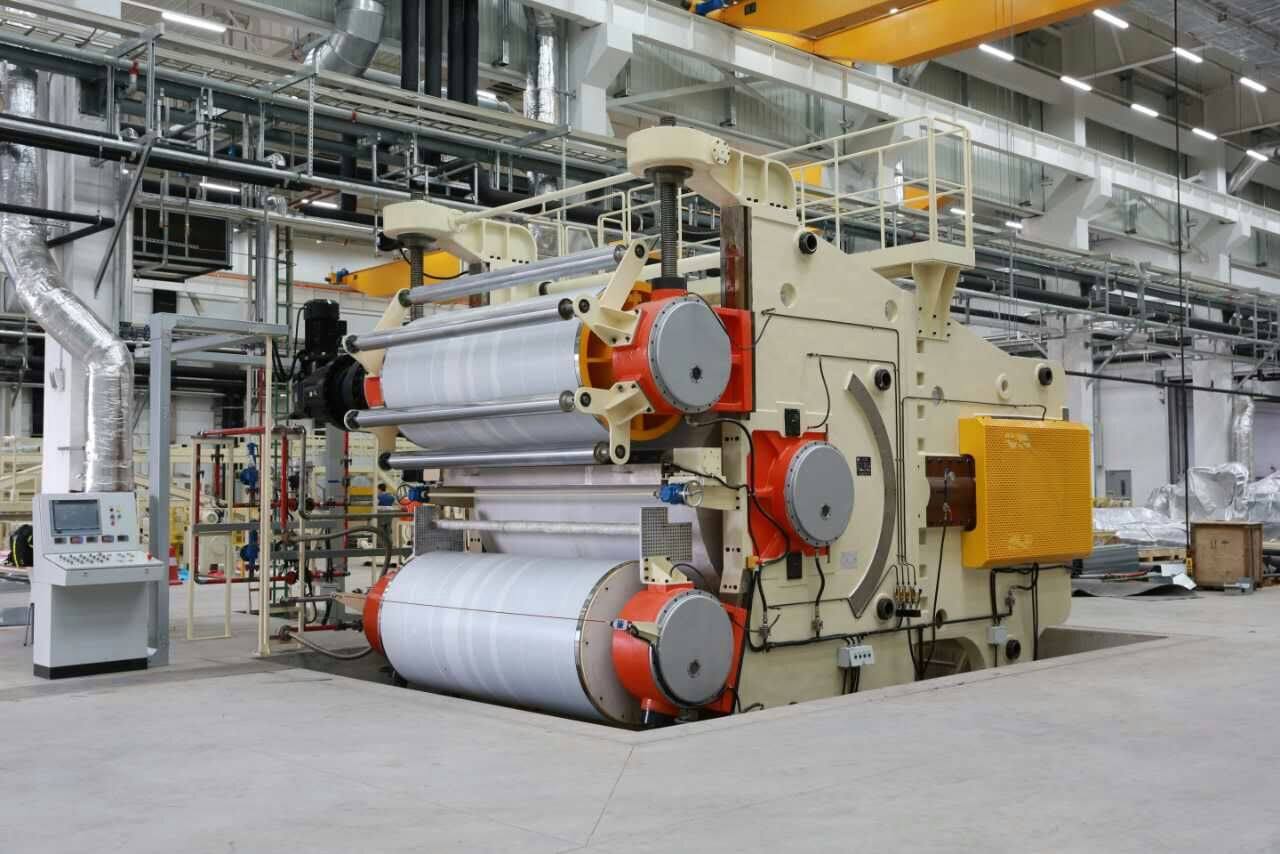

Rotary curing machine

It is mainly used for the continuous vulcanization of various long strip-shaped, sheet and belt-shaped rubber and composite material products. With its advantages of continuous production, high surface smoothness, and uniform thickness, it is widely used in the field of rubber products such as conveyor belts, rubber sheets, and rubber flooring.
For example: manufacturing of rubber sheets and conveyor belts, production of building waterproof materials.

Core Product Features: Flexible configuration of multi-roller structure, high-rigidity body design, precise roller gap adjustment, uniform temperature control system, independent drive and synchronous control, highly automated integration.

Main Technical Advantages: Efficient continuous production, excellent product quality, strong process adaptability, energy-saving and environmentally friendly design, intelligent operation and convenient maintenance.

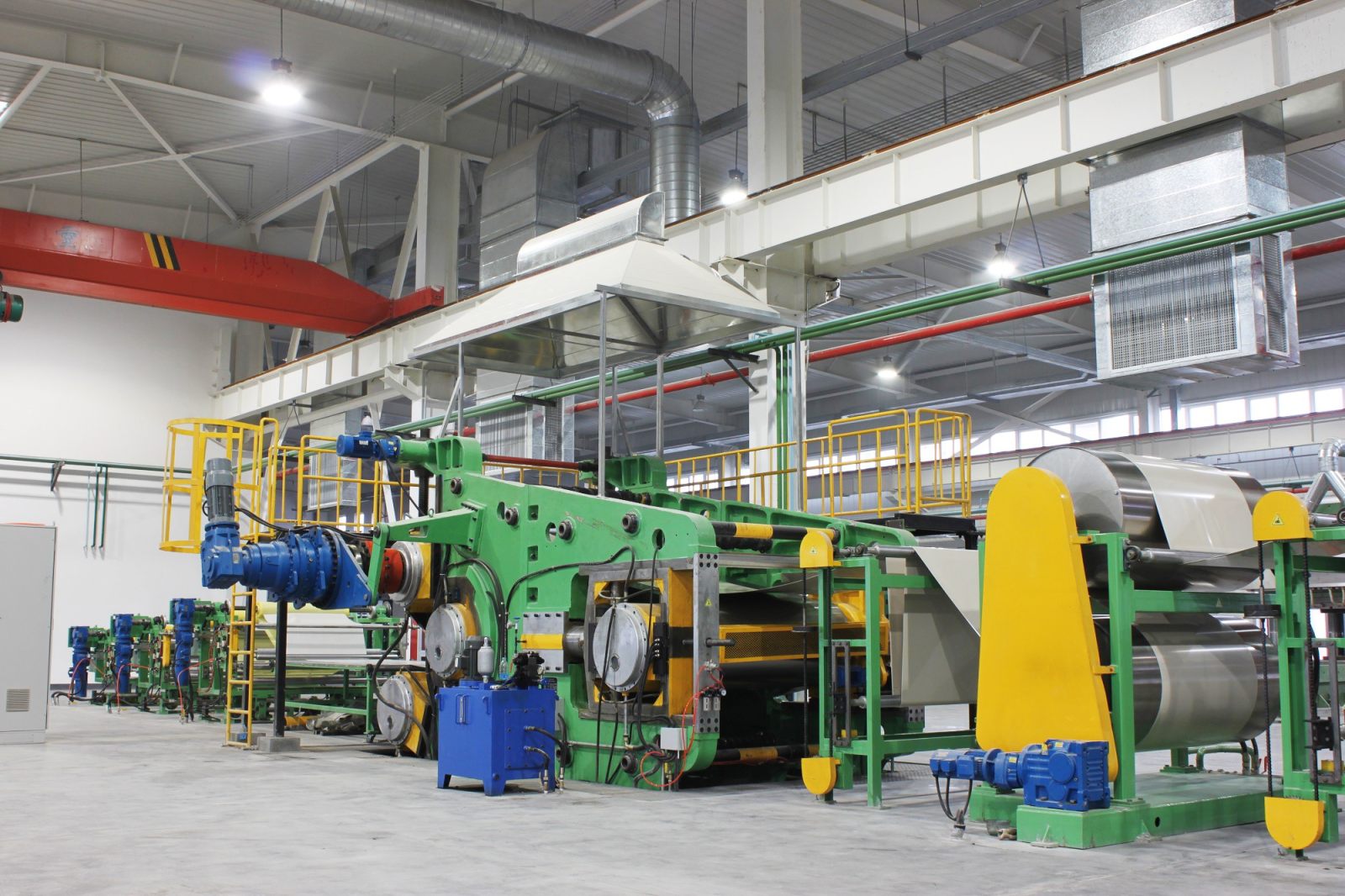

Rotary curing machine

It is mainly used for the continuous vulcanization of various rubber sheets, thin conveyor belts, waterproof materials, printing blankets, rubber-plastic flooring, linings and other sheet-shaped products. It can also customize special sheet-type vulcanizer production units according to user process requirements.

Advantages:

1. Capable of continuous vulcanization;

2. High surface smoothness of products;

3. Uniform thickness;

4. Low labor intensity;

5. Easy to realize automation of the production process.

It is suitable for producing products with high surface quality requirements and continuous patterns.

This rotary curing machine is mainly used for vulcanizing rubber sheets and belt products, such as smooth rubber sheets, patterned rubber sheets, printing rubber sheets, dyeing and printing guide belts, pulp filter belts, etc. Equipped with necessary auxiliary devices, it can also vulcanize conveyor belts, transmission belts and other similar rubber products. In recent years, it has also been popularized and applied in the production of building rubber waterproof sheets (rolls) and tarpaulin products, rubber flooring, wallpapers, plastic sheets, tiles, decorative plywood, rubber-containing particleboards and fiberboards. (The rotary curing machine is mainly composed of vulcanizing drum 1, rolling bearing 2, adjusting roller 3 (one each at upper and lower), stretching roller 4, pressure belt 5, transmission device 6, adjusting device 7, pressure belt tensioning device 8, rear pressure roller 9 (auxiliary pressure roller), frame 10, pressure belt deviation correction device 11, pressure belt cleaning device 12, vulcanizing drum cleaning device 13, pad belt adjusting device 14 and base 16, etc. Among them, the vulcanizing drum and the pressure belt are the main working parts.)

Main Technical Specification

Item	Model DLG700 x1400-1800	Model DLG800 X1400-1800	Model DLG 1500-2000	Model DLG 1500-2200	Model DLG1500 x2300-2750	Model DLG2000 x2500-3200	Model DLG2500 x3200-4500
Max Product Width (mm)	1200~1600	1200-1600	1300-1800	1300-2000	2100-2500	2300-3000	3000-4200
Max Product Thickness (mm)	0.5~6	0.5~6	0.5~6	0.5~8	1~10	1~10	1~10
Drum Dia (mm)	700	800	1100	1200	1500	2000	2500
Drum Working Width (mm)	1400~1800	1400~1800	2000	1600	2350-2750	2500-3200	3200-4500
Total Pulling Force of Steel Belt (T)	38-54	43-60	90	90	93.6-117	120-280	500-750
The Linear Speed of Vulcanizing Drum (m/min)	0.06~1.1	0.06~1.1	0.06~2	0.15~2.5	0.175~314	0.24-4.7	0.24-4.7
Steam Pressure (MPa)	≤0.8	≤1	≤1	≤1	≤1	≤1	≤1
Vulcanizing Temperature (°C)	140~160	140-160	140-160	140-160	160-180	160-180	160-180
Main Motor Power (KW)	3, 4	4	7.5	7.5	7.5-11	15~22	22~37
Overall Dimensions - L (mm)	2550	2550	3000	6223	13500	18600	23000
Overall Dimensions - W (mm)	3550-4000	3550-4000	4500	5400	6800	5600~7100	6800~7900
Overall Dimensions - H (mm)	2550	2550	2900	4000	4900	5900~6200	6600
About Weight (t)	~19-22	~19-25	~32	~50	~79	~80-120	~130-180
