Dedicated production line for dual-layer composite inner liners (air barrier layers) for all-steel/semi-steel radial tires;

It uses two extruders + composite calendering to form inner and outer dual-layer rubber sheets with different formulations in one pass.

It is suitable for co-extrusion and compounding of butyl rubber + carcass compound/transition compound, and directly supplies materials for tire building.

Continuous, large-volume production in automated semi-finished product workshops of large tire plants.

Applications:

Dual-layer air barrier for semi-steel radial tires; dual-layer inner liner for all-steel truck/bus tires and OTR tires;

It can produce air barrier + transition layer and air barrier + thin rubber layer composite sheets.

Product features: dual-main-machine co-extrusion + calendering lamination; the two rubber compounds are hot-bonded with no joints;

The thickness of each layer can be independently controlled, and the total thickness and interlayer ratio can be flexibly adjusted;

Low-shear extrusion + precise temperature control, suitable for butyl rubber, less prone to scorching;

Online laser/radiation thickness measurement + closed-loop control, high thickness accuracy;

Equipped with cooling, material storage, haul-off, cutting, and automatic winding, with full-line linkage.

Core advantages:

One-pass forming of dual-layer composite eliminates secondary lamination and greatly improves efficiency; strong interlayer adhesion, no delamination, no bubbles, and more stable air tightness. It enables differentiated functional design with an inner layer for air tightness and an outer layer for adhesion; uniform and stable thickness, high compound utilization, and lower costs; high automation and good quality consistency, suitable for mass production of high-end tires; compared with single extrusion, more flexible formulation design and better overall performance and cost.

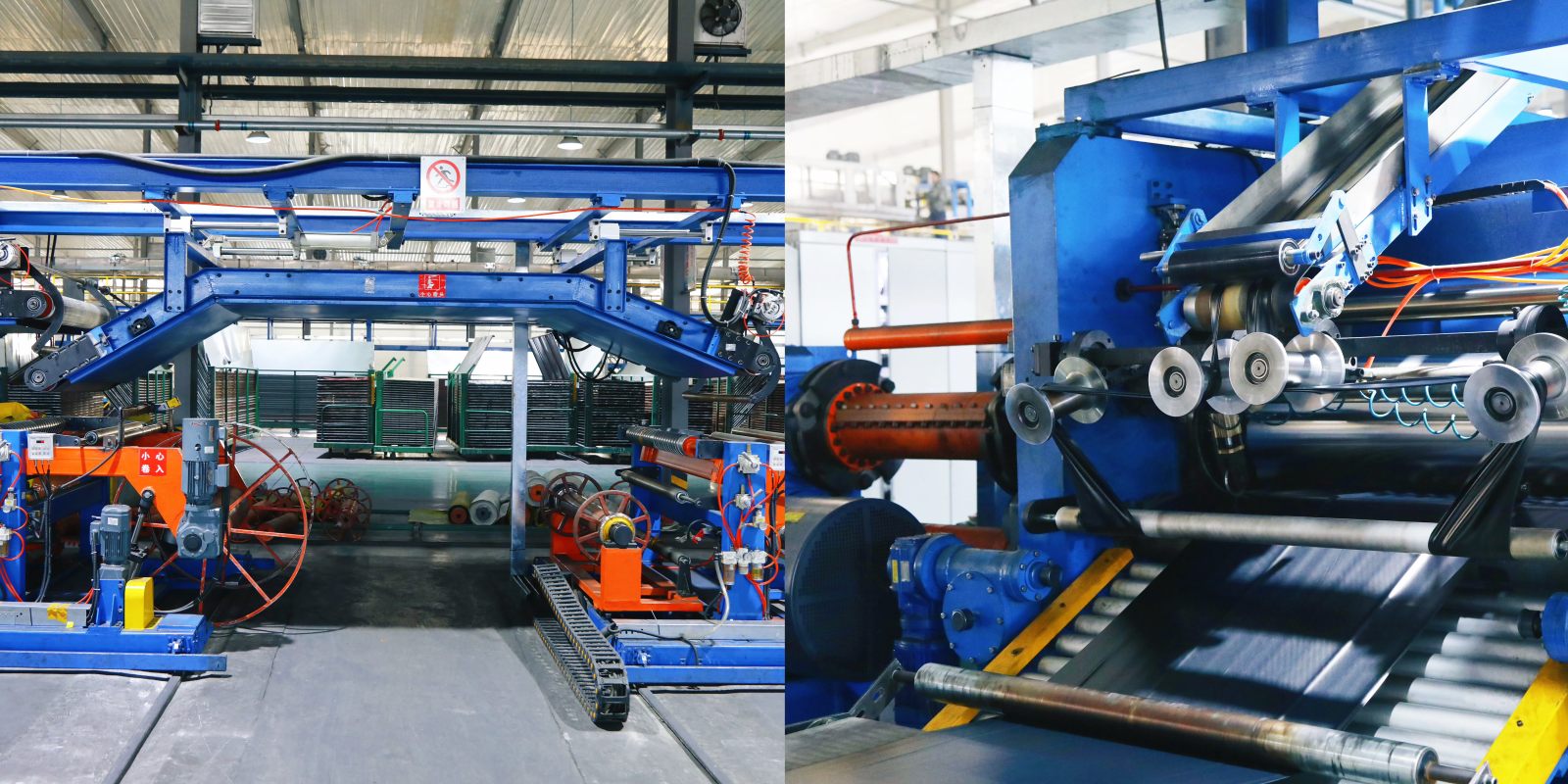

Inner Liner Production Line by Extrusion-Calendering Method

The extrusion-calendering inner liner production line is dedicated equipment for radial tire inner liner production. It is mainly used for extrusion, calendering, edge trimming, cooling, unwinding, lamination, fixed-length cutting, and winding of inner liners and thin rubber sheets for all-steel truck radial tires. It can produce either single air barrier components or composite dual air barrier components.

Equipment features: This production line uses calendering to produce inner liners and thin rubber sheets. Different production processes can be set according to different product properties. Cord fabric unit: dual-station unwinding saves material change time and improves work efficiency. The fabric accumulator is equipped with an electrical speed control device to keep the unwinding speed coordinated with the calendering speed, preventing the cord fabric from stretching and deformation. The products have high precision, good density, uniform thickness, and product temperature below 100°C.

Parameters

Item	Single-extruder Cold Composite Production Line	Counter-extrusion Hot Composite Production Line
Production line working width	1300mm	1300mm
Single-layer product width	500-1050mm	500-1050mm
Single-layer product thickness	0.5-6mm	0.5-6mm
Extruder	XJD-200×16D	XJD250/200×16D
Number of extruders	1	2
Head working pressure	20MPa	20MPa
Two-roll calender	XY-2I 400*1300	XY-2I 400*1300
Number of calenders	1	2
Production line speed	3-30m/min	3-30m/min
