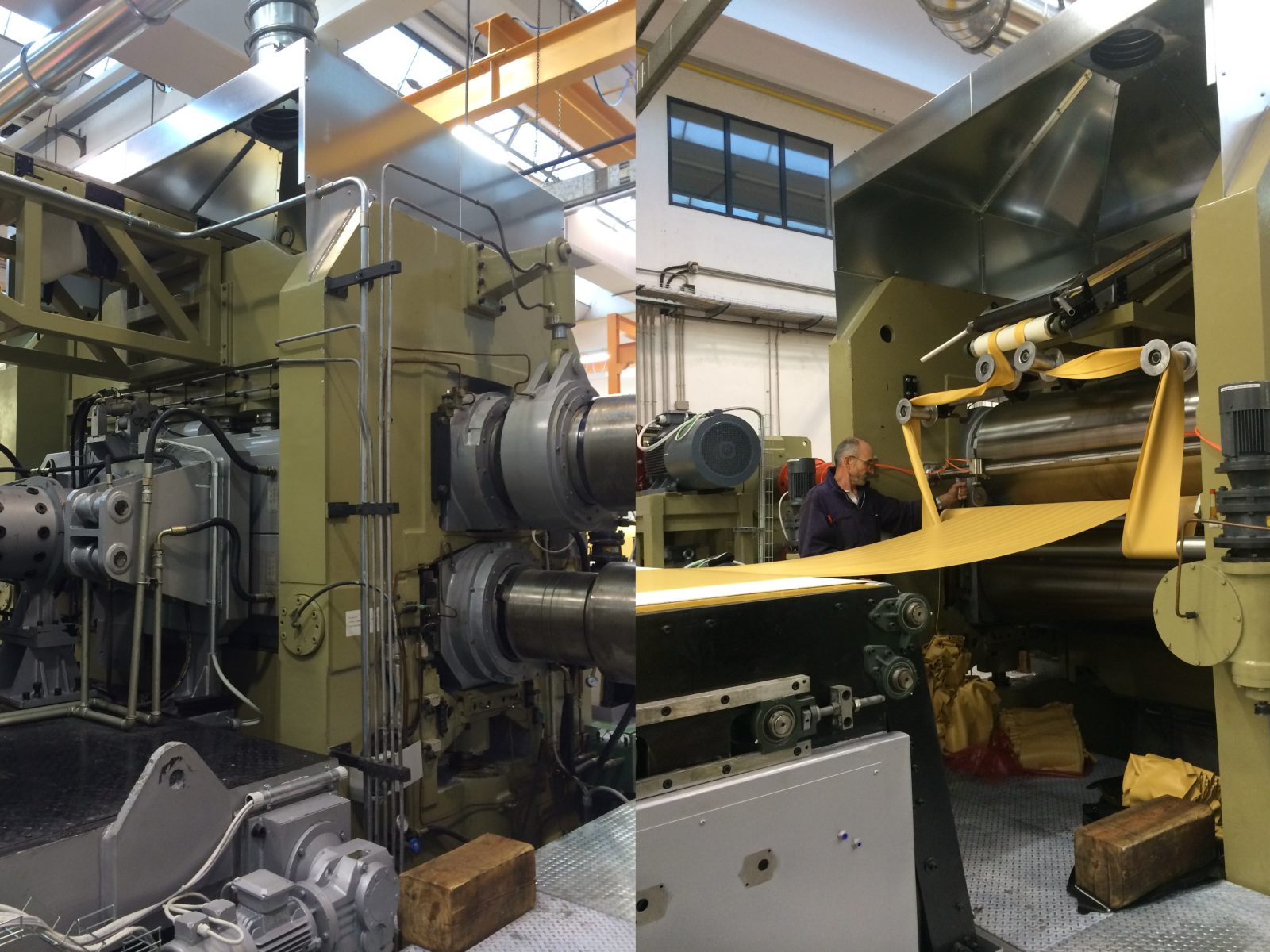

The wide-width extrusion calender is mainly used for the extrusion of high-quality wide rubber products. It is particularly suitable for rubber conveyor belt products and can ensure continuous and stable cross-sectional dimensional tolerances of the products.

The main feature of this equipment is that the rubber compound passes through a pin-type cold-feed extruder with high quality, high output, high efficiency, and energy saving, as well as a new type of roller head, directly extruding rubber sheet products of various specifications with a width of 2500mm and a thickness of 0.6~10mm. The extruded products have good plasticization effect and good air tightness, thoroughly eliminating the disadvantage of poor air tightness in the calendering production process caused by the difficulty in removing air bubbles from accumulated rubber compound. Moreover, it has high production efficiency, saves energy, and greatly reduces production costs. On the other hand, this equipment can directly carry out the hot lamination production process, which is a new production process in tire product manufacturing at home and abroad. The use of this equipment replaces traditional rubber sheet production process equipment, saves a large amount of equipment investment, significantly reduces energy consumption, and at the same time greatly improves product quality. It is currently a replacement product in rubber sheet production process equipment.

Parameters

Item	Model XJD-120/360×1120	Model XJD-150/400×1200	Model XJD-150/450×1500	Model XJD-200/550×1600	Model XJD-250/610×1850	Model XJD-250/710×2300	Model XJD-250/800×2500
Extruder Model	XJD-120×14D	XJD-150×16D	XJD-150×16D	XJD-200×16D	XJD-250×16D	XJD-250×16D	XJD-250×16D
Calender Model	360×1120	400×1200	450×1500	550×1600	610×1850	710×2300	800×2500
The Maximum Width of Production	900	1000	1300	1400	1600	2000	2200
The Thickness Range of Production	0.3~6	0.3~6	0.3~8	0.3~10	0.5~10	0.5~12	0.5~12
Production Linear Speed	2~20m/min	2.5~25m/min	2.5~25m/min	3~30m/min	3~30m/min	3~30m/min	3~30m/min
Extruder Main Motor Power	110KW	220KW	220KW	355KW	500KW	500KW	500KW
Calender Main Motor Power	18.5KW×2	22KW×2	30KW×2	45KW×2	75KW×2	110KW×2	132KW×2
