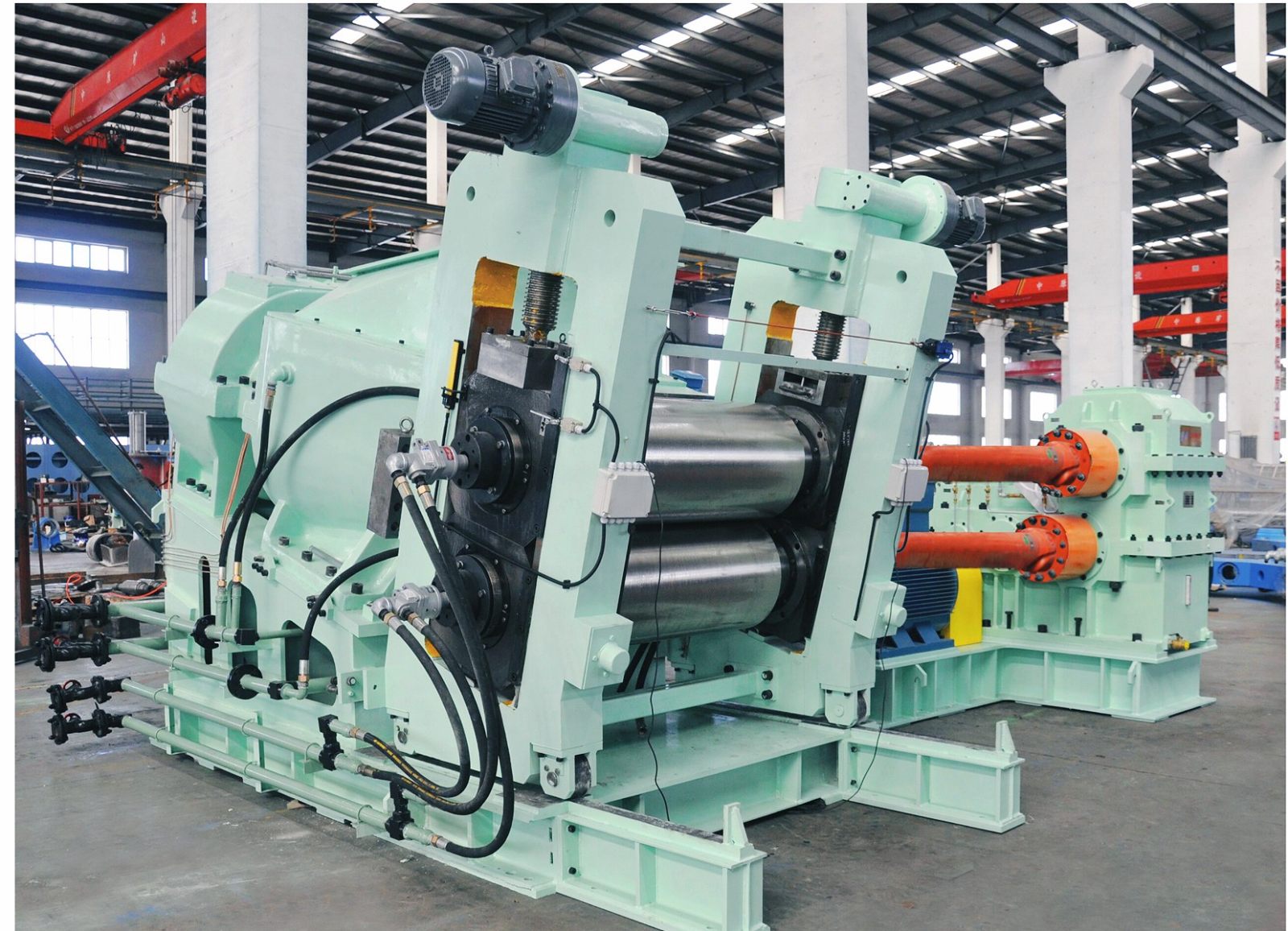

Double Screw Extruding Sheeter

It is used for automatic sheeting after rubber and rubber-plastic mixing. The rubber compound discharged from the internal mixer is continuously extruded into sheets through a twin-screw extruder, replacing the traditional open mill. It is an automated production line with 2-3 times higher capacity and stable quality.

Application Industries:

Structural Features:

1. High degree of automation: Replaces the open mill for automatic sheeting, requires no manual operation, features online monitoring and automatic gap adjustment.

2. High quality of mixed rubber: The double-conical fully intermeshing screw ensures the compactness of the rubber compound, uniform mixing of the rubber compound, and good dispersion of sulfur.
   Environmental protection: The rubber compound mixed by the internal mixer is automatically put into the twin-screw extruder when the discharge door is opened. The enclosed extrusion is more environmentally friendly.

Main Technical Specification

Item	Model XJY-SZ335×113	Model XJY-SZ405×141	Model XJY-SZ482×200	Model XJY-SZ602×250	Model XJY-SZ743×330	Model XJY-SZ936×416
Shape of screw	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical
Quantity of screw	2	2	2	2	2	2
Arrangement of screw central-line	Band with Angle	Band with Angle	Band with Angle	Band with Angle	Band with Angle	Band with Angle
Diameter of screw	Φ335×113	Φ405×141	Φ482×200	Φ602×250	Φ743×330	Φ936×416
Speed of screw	5~18	22~22	22~22	22~22	2.65~26.5	22~22
Extruding motor power	22	37	75	90	132/160	220/250
Size of roll (D×L)	Φ348×600	Φ348×700	Φ360×700	Φ400×800	Φ450×1000	Φ508×1070
Speed of roll	2~12	2.5~25	2.5~25	2.5~25	3.2~32	3~30
Max roller working gap range	3~8	3~8	3~10	3~10	3~10	3~10
Drive method	Manual, Setup	Electric	Electric	Electric	Electric	Electric
Distance between guide wheels	400	450	450	550 (600)	700 (750)	700 (750, 800, 850)
Motor of roller die	15	30	75	90	132/160	250
Max production capacity	1.5	2	3	6	9	11
Consume of cooling water	~13	~16	~20	~30	35~45	38~50
Overall dimensions (L×W×H)	3300×2000×1680	3600×3200×2400	4350×4150×2380	4570×4320×2720	4850×5300×2560	5460×5800×3400
About Weight (except main motor)	~8.5	~10	~23	~25	~30	~44
